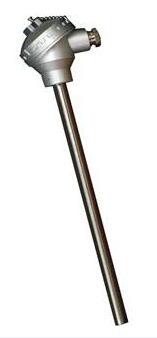

Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131

  • Model:WRN-130 WRN-131
  • Structure:Output signal number :Single
  • Temperature:0~1300℃
  • Material:Nickel chromium-nickel silicon
  • Connection :No fixed device
  • Others:Terminal type:Waterproof type
  • Description:Without fixed device,Waterproof type,,Max Temp:0~1300℃,Working Temp:0~1000℃

Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131



Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 Brief Description

Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 is without fixed device connection,waterproof type,Assembly Thermocouple WRN-130 WRN-131 is used as a sensor to measure temperature, Assembly Thermocouple WRN-130 WRN-131 usually matched with display instruments, recording meter and electronic computer.Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 can directly measure temperature from 0℃ to 1300℃ of liquid, vapor, gas medium and solid surface during various production processes. In addition, Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 has the advantages of simple assembly, convenient replacement, pressure spring type temperature sensing element, good anti-vibration, wide measuring range, high mechanical strength, good pressure durability.



Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 Main technical parameter

Temperature measurement range and tolerance

Thermocouple type

Code

Graduation

Measurement range℃

tolerance△t ℃

 Nickel chromium nickel silicon

WRN

K

Max Temp:0~1300
Working Temp:0~1000

±2.5℃/±0.75%│t│

Note: “t” is absolute value of measured temperature of temperature-sensing element.


Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 specification


WRN Series, Assembly type thermocouple
Max. Temperature : 0℃~1300℃ (Working temperature 0℃~1000℃)
Output signal No.Single
 Assembly Thermocouple Assembly Thermocouple Assembly Thermocouple Assembly Thermocouple WRR High temperature thermocouble-4 WRR High temperature thermocouble-5
 Base on Water proof (3)
Splash proof type (2),Explosion proof (4) is for option.
Without fixed device
(1)
Fixed threaded
(2)
Movable flange
(3)
Fixed flange
(4)
Movable flange square
(5)
Fixed thread
conical
(6)
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Thermocouple
WRN-130
WRN-131
WRN-132
WRN-133
Thermocouple
WRN-230
WRN-231
WRN-232
WRN-233
Thermocouple
WRN-330
WRN-331
WRN-332
WRN-333
Thermocouple
WRN-430
WRN-431
WRN-432
WRN-433
Thermocouple
WRN-530
WRN-531
WRN-532
WRN-533
Thermocouple
WRN-630
WRN-631
WRN-632
WRN-633




Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 Model


     WR

Thermocouple

Content



Code

Heat probe type

R

Pt-Rh30- Pt-Rh6

P

Pt-Rh 10-Pt

N

Nickel chromium-nickel silicon

M

Nickel chromium nickel silicon - silicon

E

Nickel chromium - nickel copper

C

Copper - Copper - Nickel

F

Iron copper nickel



Code

Output signal number

None
 2

     single
     double

Code

Fixed device form



     1
     2
     3
     4
     5
     6
     7

     Without fixed device
     Fixed threaded
     Movable flange
     Fixed flange
     Movable flange square
     Fixed thread conical
     Straight pipe joint type

Code

Terminal type

     2
     3
     4

     Splash proof
     Waterproof type
     Explosion proof type



Code

Protection tube diameter

0

Φ16mm

1

Φ25mm

2

Φ16mm

3

Φ20mm

If the Waterproof Non-fixed Assembly Thermocouple WRN-130 WRN-131 for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
