Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331

  • Model:WRP-330 WRP-331
  • Structure:Output signal number :Single
  • Temperature:0~1600℃
  • Material:Pt-Rh 10-Pt
  • Connection :Movable flange
  • Others:Terminal type:Waterproof type
  • Description:Movable flange,waterproof,Max Temp:0~1600℃,Working Temp:0~1300℃

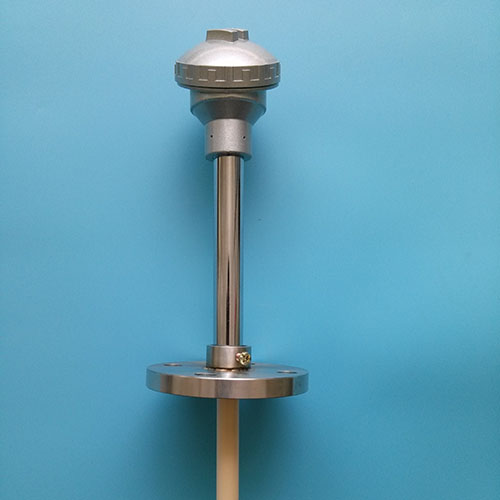

Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331


Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 Brief Description

Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 is industrial assembly-type thermocouple without movable flange connection, waterproof terminal,Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 can directly measure temperature from 0℃ to 1600℃ of liquid, vapor, gas medium and solid surface during various production processes.Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 is used as a sensor to measure temperature, usually matched with display instruments, recording meter and electronic computer.  In addition,Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 has the advantages of simple assembly, convenient replacement, pressure spring type temperature sensing element, good anti-vibration, wide measuring range, high mechanical strength, good pressure durability.



Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 Main technical parameter
Temperature measurement range and tolerance

Thermocouple type

Code

Graduation

Measurement range℃

tolerance△t ℃

Pt Rh10-Pt

WRP

S

Max Temp:0~1600
Working Temp:0~1300

±1.5℃ /±0.25%│t│

Note: “t” is absolute value of measured temperature of temperature-sensing element.


Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 material and temperature

Conductor Material Type Graduation Spec. of protection tube(mm) Use temperature
°C
Total Length Length in fluid external diameter
of ceramic tube
Material of protection tube
PtRh30-Ptrh6 WRR B 300
350
400
450
550
650
900
1150
1250
150
200
250
300
400
500
750
1000
1100
φ16
φ25
Corundum tube 0-1600
PtRh10-Pt WRP S High Al content tube 0-1300
PtRh13-pT WRQ R φ16
φ20
High Al content tube 0-1200
Mini PtRh10-Pt WRP-100 S 252 252 φ7 High Al content tube 0-1200




Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 specification

WRP Series, Assembly type thermocouple
Max. Temperature : 0℃~1600℃ (Working temperature 0℃~1300℃)
Output signal No.Single
 WRR High temperature thermocouble-1 WRR High temperature thermocouble-2 WRR High temperature thermocouble-3 WRR High temperature thermocouble-3 WRR High temperature thermocouble-4 WRR High temperature thermocouble-5
 Base on Waterproof type (3),
Splash proof (2),Explosion proof (4) is for option.
Without fixed device
(1)
Fixed threaded
(2)
Movable flange
(3)
Fixed
flange
(4)
Movable flange square
(5)
Fixed thread
conical
(6)
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Thermocouple
WRP-130
WRP-131
WRP-132
WRP-133
Thermocouple
WRP-230
WRP-231
WRP-232
WRP-233
Thermocouple
WRP-330
WRP-331
WRP-332
WRP-333
Thermocouple
WRP-430
WRP-431
WRP-432
WRP-433
Thermocouple
WRP-530
WRP-531
WRP-532
WRP-533
Thermocouple
WRP-630
WRP-631
WRP-632
WRP-633



Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331 Model

WR

Thermocouple

Content



Code

Heat probe type

R

Pt-Rh30- Pt-Rh6

P

Pt-Rh 10-Pt

N

Nickel chromium-nickel silicon

M

Nickel chromium nickel silicon - silicon

E

Nickel chromium - nickel copper

C

Copper - Copper - Nickel

F

Iron copper nickel



Code

Output signal number

None
2

single
double

Code

Fixed device form



1
2
3
4
5
6
7

Without fixed device
Fixed threaded
Movable flange
Fixed flange
Movable flange square
Fixed thread conical
Straight pipe joint type

Code

Terminal type

2
3
4

Splash proof
Waterproof type
Explosion proof type



Code

Protection tube diameter

0

Φ16mm

1

Φ25mm

2

Φ16mm

3

Φ20mm

If Movable flange Waterproof Assembly Thermocouple WRP-330 WRP-331of WRP series assembly-type thermocouple for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
