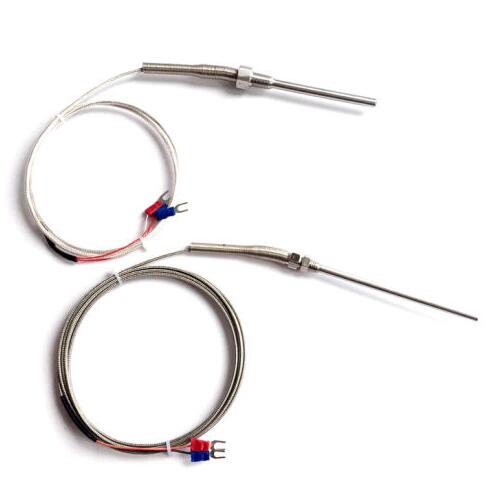

K Type Temperature Controller Probe Thermocouple

  • Model:WRNK,WREK,WRCK,WZPK
  • Structure:Output signal number :Single
  • Temperature:0~800℃
  • Material:NiCr-CuNi
  • Connection :Thread Connection
  • Others:Splash proof, Water proof
  • Description:Different material is optional according to the temperature.

K Type Temperature Controller Probe Thermocouple

K Type Temperature Controller Probe Thermocouple is a sensor that measures temperature. K Type Temperature Controller Probe Thermocouple consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.
K Type Temperature Controller Probe Thermocouple is widely used in science and industry; K Type Temperature Controller Probe Thermocouple Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. K Type Temperature Controller Probe Thermocouple is also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
We offer fixed and flexible screw and flange. You should supply the specifications of the fasteners. If no specifications, we can offer professional help.

K Type Temperature Controller Probe Thermocouple Technical Datas

Model

Graduation Mark

Temperature Range(°C)

Mounting&Fixing

WRN

K

-40-1200

1.Withour fixing devices;

2.Threaded connector;

3.Movable flange

4.Fixed flange

5.Elbow tube connection

6.Threaded cone connection

7.Straight tube connection

8.Fixed threaded tube connection

9.Movable threaded tube connection

WRE

E

-40-900

WRF

J

0-750

WRC

T

-40-350

WRP

S

0-1600

WRQ

R

0-1600

WRR

B

600-1700

WRM

N

-40-1300



K Type Temperature Controller Probe Thermocouple Model

W

R

Spec





N

NiCr-NiSi

E

NiCr-CuNi

C

Cu-CuNi

Material of thermometric element

K



Armoured type

-

1

No fixed device

2

Fixed adjustable thread joint

3

Flexible adjustable thread joint

4

Fixed adjustable thread flange

5

Flexible adjustable thread flange

Mounting fixed type

0

No junction box

2

Splash-proof

3

Water-proof

8

Hand lever

8

Little junction box

9

With compensating lead wire

Junction box type

1

Insulation

2

Shell connecting

7

Insulation(Hand lever)

8

Shell connecting(Hand lever)

Working end type

3

3-couples

4

4-couples

5

5-couples

6

6-couples

Multi-couples



W

R

N
E
C

K

-

2
3

9

1
2



If K Type Temperature Controller Probe Thermocouple  for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
