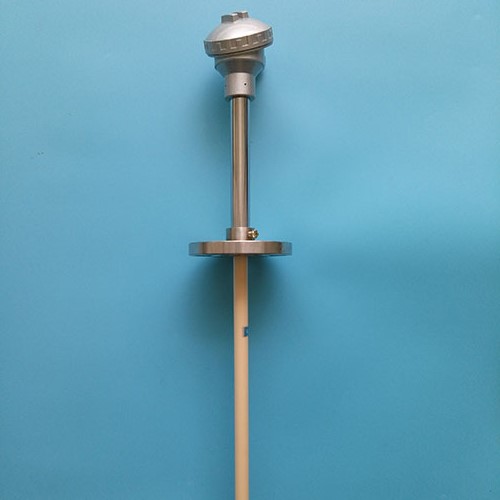

High temperature thermocouple thermometer

  • Model:WRR WRP WRQ
  • Structure:Output signal number:Single or double
  • Temperature:0~1600℃
  • Material:Pt-Rh 10-Pt
  • Connection :Different way
  • Others:Splash proof, Water proof,Explosion proof
  • Description:Max. Temperature : 0℃~1600℃, Working temperature 0℃~1300℃

High temperature thermocouple thermometer


High temperature thermocouple thermometer Brief Description

High temperature thermocouple thermometer is used as a sensor to measure temperature, usually matched with display instruments, recording meter and electronic computer. High temperature thermocouple thermometer can directly measure temperature from 0℃ to 1600℃ of liquid, vapor, gas medium and solid surface during various production processes. In addition, High temperature thermocouple thermometer has the advantages of simple assembly, convenient replacement, pressure spring type temperature sensing element, good anti-vibration, wide measuring range, high mechanical strength, good pressure durability.


High temperature thermocouple thermometer Main technical parameter
Temperature measurement range and tolerance

Thermocouple type

Code

Graduation

Measurement range℃

tolerance△t ℃

Pt Rh10-Pt

WRP

S

Max Temp:0~1600
Working Temp:0~1300

±1.5℃ /±0.25%│t│

Note: “t” is absolute value of measured temperature of temperature-sensing element.


High temperature thermocouple thermometer material and temperature

Conductor Material Type Graduation Spec. of protection tube(mm) Use temperature
°C
Total Length Length in fluid external diameter
of ceramic tube
Material of protection tube
PtRh30-Ptrh6 WRR B 300
350
400
450
550
650
900
1150
1250
150
200
250
300
400
500
750
1000
1100
φ16
φ25
Corundum tube 0-1600
PtRh10-Pt WRP S High Al content tube 0-1300
PtRh13-pT WRQ R φ16
φ20
High Al content tube 0-1200
Mini PtRh10-Pt WRP-100 S 252 252 φ7 High Al content tube 0-1200



High temperature thermocouple thermometer specification

WRP Series, Assembly type thermocouple
Max. Temperature : 0℃~1600℃ (Working temperature 0℃~1300℃)
Output signal No.Single
 WRR High temperature thermocouble-1 WRR High temperature thermocouble-2 WRR High temperature thermocouble-3 WRR High temperature thermocouble-3 WRR High temperature thermocouble-4 WRR High temperature thermocouble-5
 Base on Splash proof type (2),
Water proof (3),Explosion proof (4) is for option.
Without fixed device
(1)
Fixed threaded
(2)
Movable flange
(3)
Fixed
flange
(4)
Movable flange square
(5)
Fixed thread
conical
(6)
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Protection tube diameter
0:Φ16mm
1:Φ25mm
2:Φ16mm
3:Φ25mm
Thermocouple
WRP-120
WRP-121
WRP-122
WRP-123
Thermocouple
WRP-220
WRP-221
WRP-222
WRP-223
Thermocouple
WRP-320
WRP-321
WRP-322
WRP-323
Thermocouple
WRP-420
WRP-421
WRP-422
WRP-423
Thermocouple
WRP-520
WRP-521
WRP-522
WRP-523
Thermocouple
WRP-620
WRP-621
WRP-622
WRP-623




High temperature thermocouple thermometer Model


     WR

Thermocouple

Content



Code

Heat probe type

R

Pt-Rh30- Pt-Rh6

P

Pt-Rh 10-Pt

N

Nickel chromium-nickel silicon

M

Nickel chromium nickel silicon - silicon

E

Nickel chromium - nickel copper

C

Copper - Copper - Nickel

F

Iron copper nickel



Code

Output signal number

None
 2

     single
     double

Code

Fixed device form



     1
     2
     3
     4
     5
     6
     7

     Without fixed device
     Fixed threaded
     Movable flange
     Fixed flange
     Movable flange square
     Fixed thread conical
     Straight pipe joint type

Code

Terminal type

     2
     3
     4

     Splash proof
     Waterproof type
     Explosion proof type



Code

Protection tube diameter

0

Φ16mm

1

Φ25mm

2

Φ16mm

3

Φ20mm

If the High temperature thermocouple thermometer for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
