Platinum Resistance Rtd Temperature Sensor PT100

  • Model:WZP WZPK
  • Structure:Output signal number :Single
  • Temperature:-200~500℃
  • Material:PT100
  • Connection :Different way
  • Others:Splash proof, Water proof
  • Description:Assembly Or Armored Thermal Resistance, PT100

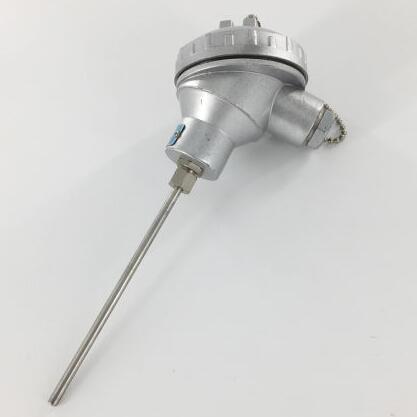

Platinum Resistance Rtd Temperature Sensor PT100

Platinum Resistance Rtd Temperature Sensor PT100 Brief Description

Platinum Resistance Rtd Temperature Sensor PT100 is used as a sensor to measure temperature, usually matched with display instruments, recording meter and electronic computer. Platinum Resistance Rtd Temperature Sensor PT100 can directly measure temperature from -200℃ to 500℃ of liquid, vapor, gas medium and solid surface during various production processes. Our factory product two categories assembly-type, unified design type thermal resistance: Pt100 as per IEC and Cu50 as per Professional norm degree. In addition, Platinum Resistance Rtd Temperature Sensor PT100  has the advantages of simple assembly, convenient replacement, pressure spring type temperature sensing element, good anti-vibration, wide measuring range, high mechanical strength, good pressure durability.



Platinum Resistance Rtd Temperature Sensor PT100 Range and accuracy

Thermal resistance type

Range℃

Graduation

Tolerance△t ℃

WZP type Pt resistance

Max Temp.-200~500
Measure Temp:-200~420

Pt100

Class B tolerance±(0.3/+0.005︱t︱)

Class A tolerance±(0.15/+0.002︱t︱)

Note: “t” is absolute value of measured temperature of temperature-sensing element.



Platinum Resistance Rtd Temperature Sensor PT100 Performance

Product name RTD Temperature Sensor PT100
Graduation Pt100
Measuring temperature range -200-500C, 0-600C, 0-800C
Tube Diameter 1.5mm-30mm
Tube Length 100mm to 1500mm
Tube material SUS304/SUS316 etc
Installation Thread/ Flange



Platinum Resistance Rtd Temperature Sensor PT100 Model

W

Z

Spec

Content





P



Pt resistance

C



Cu resistance

Thermal resistance material

-



Without fixed device

2



Fixed threaded

3



Movable flange

4



Fixed flange

5



Loose coupling type

6



Fixed thread conical

7



Direct coupling type

8



Fixed threaded pipe joint type

9



Movable threaded pipe joint type

Fixed installation form

2



Splash proof

3



Waterproof type

4



Explosive-proof type

Junction box form

0

Φ16mm protection tube

1

Φ12mm protection tube

Protection tube diameter

No unified design:All kinds of protection tube

W

Z

P

-











If the Platinum Resistance Rtd Temperature Sensor PT100 for sale caters to your requirement, welcome to buy with us. As one of the leading such manufacturers and suppliers in China, we will offer you cheap price and excellent services.
